Tire Pressure Monitoring System Front Antenna: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. Refer to SPECIFICATIONS information.
  2. Turn the steering on to full lock for access.
  3. Release the front of the fender splash shield.
    • Remove the 5 Torx bolts.
    • Tie the splash shield aside.
      GJ0008925

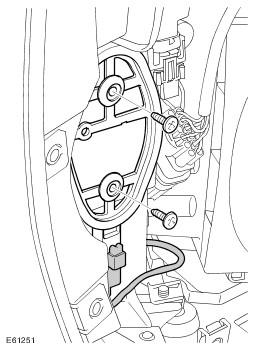

  4. Remove the tire pressure antenna.
    • Disconnect the electrical connector.
    • Remove the 2 clips.
      GJ0008927
