Oil Pump: Installation

WARNING: This page is about a different car, the 2011 Jaguar XK and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate and install the new O-ring seals.
    GJ0012881
  2. Torque:

    M8 25 Nm

    M6 12 Nm

    GJ0012882
  3. Lubricate and install a new O-ring seal.
    GJ0012883
  4. Torque: 12 Nm
    GJ0012884
  5. Torque: 21 Nm
    GJ0012878
    6. NOTE: Tsubaki timing drive only.

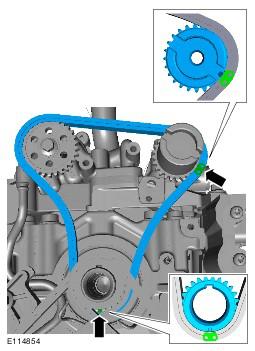

  6. Install the lower timing chain making sure the colored chain links align correctly with the fuel rail high-pressure fuel pumps camshaft and crankshaft sprocket markings.
    GJ0012885
    7. CAUTION: Make sure that the tensioner spring is correctly located.
    NOTE: Tsubaki timing drive only.
  7. Torque: 21 Nm
    GJ0012876
    8. NOTE: INA timing drive only.
  8. Install the lower timing chain making sure the colored chain links align correctly with the fuel rail high-pressure fuel pumps camshaft and crankshaft sprocket markings.
    GJ0012886
    9. CAUTION: Make sure that the tensioner spring is correctly located.
    NOTE: INA timing drive only.
  9. Torque: 21 Nm
    GJ0012877
  10. Refer to Oil Pan Extension .
  11. Refer to Battery Disconnect and Connect information.
