Fuel Pump Camshaft Assembly Part Number: INA Timing Drive: Installation
WARNING: This page is about a different car, the 2011 Jaguar XK and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
- See figure
- Torque: 12 Nm
- Torque: 21 Nm
- Torque: 12 Nm

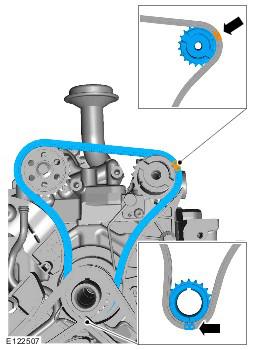

- Install the lower timing chain making sure the colored chain links align correctly with the fuel rail high-pressure fuel pumps camshaft and crankshaft sprocket markings.
- Torque: 21 Nm
- Refer to Oil Pan Extension .
- Refer to Specifications information.
CAUTION:
Make sure that the mating faces are clean and free of foreign material.
CAUTION:
Take extra care not to damage the mating faces.
CAUTION:
Make sure that the tensioner spring is correctly located.
