Cylinder Head RH: Installation
WARNING: This page is about a different car, the 2011 Jaguar XK and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
- Check cylinder head face for distortion, across the center and from corner to corner.

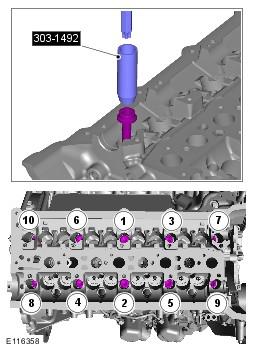

- See figure
- Torque: 20
- Torque: 35
- Tighten the bolts 1 to 10, a further 90 degrees.
- Tighten the bolts 1 to 10, a further 120 degrees.
- Torque: 25 Nm
- Torque: 12 Nm
- Lubricate the valve tappets with clean engine oil.
- Torque: 12 Nm

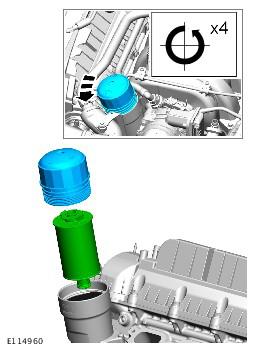

- See figure
- Torque: 12 Nm
- Torque: 20 Nm
- Torque: 20 Nm
- Torque: 10 Nm
- Torque: 12 Nm
- Torque: 25 Nm
- Torque: 25 Nm
- Refer to EXHAUST MANIFOLD LH information.
- Refer to Camshaft RH .
- Refer to Intake Manifold .
- Refer to Battery Disconnect and Connect information.
CAUTION:
An acceptable flatness of the cylinder head is 0.1mm.
NOTE:
For cylinder head with distortion above the maximum allowance, the cylinder head material must be measured.
CAUTION:
Use care when installing the cylinder head. Damage to the cylinder block, cylinder head or cylinder head gasket may result.
CAUTION:
The head gasket must be installed over the cylinder block dowels.
NOTE:
Install a new cylinder head gasket.
CAUTION:
If a new cylinder head has been installed then new tappets must be installed.
CAUTION:
If the cylinder head is being removed without a new component being installed, the tappets must be installed in their original positions.
NOTE:
Install a new gasket.
CAUTION:
A new O-ring seal is to be installed.
NOTE:
Install a new engine oil filter.
CAUTION:
Install the new seals.
CAUTION:
Install a new seal.
