Fuel Pump Camshaft Timing Adjustment: Adjustment

WARNING: This page is about a different car, the 2011 Jaguar XK and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
  1. Refer to Battery Disconnect And Connect information.
    2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
  2. Raise and support the vehicle.
  3. Refer to Fuel Pump Camshaft Timing Check .
  4. Refer to Lower Timing Cover .
    5. CAUTION: Make sure that the area around the component is clean and free of foreign material.
    CAUTION: Inspect the 3 timing chain oil nozzles for signs of damage, install as necessary.
  5. See figure

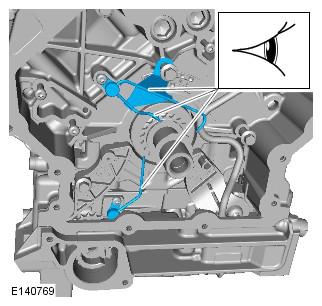

    G00521048
    6. NOTE:

    Using a suitable tie strap, position the tensioner to one side.

  6. Special Tool(s): Alignment Tool, Fuel Pump Camshaft Timing (JLR-303-1613)

    Torque: 12 Nm

    multimedia:A supplement to the article is available.

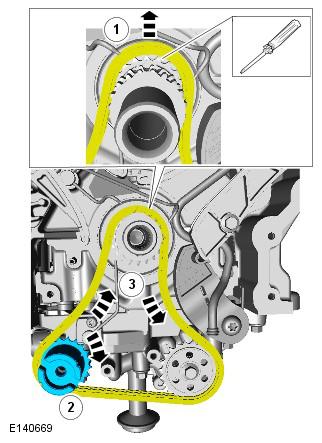

    G00521049
  7. Refer to Lower Timing Cover .
  8. Remove the Special Tool(s): Timing Tool (303-1447)
    GJ0012164
  9. Torque: 10 Nm
    G00531483
    10. NOTE: Install a new sealing washer.
  10. Torque: 24 Nm
    G00531273
  11. Refer to Battery Disconnect And Connect information.
    12. CAUTION: Make sure that the vehicle is left for 5 minutes from filling with oil and that the engine oil level is reading at least minimum (by following Steps 15-19), before starting the engine.
    • Fill the engine with oil - for filling values on vehicles without supercharger:

      Refer to Specifications  information.

    • Fill the engine with oil - for filling values on vehicles with supercharger:

      Refer to SPECIFICATIONS information.

    • Clean any residual engine oil from the oil filler cap area.
    13. CAUTION: Make sure that the vehicle has been left for 5 minutes from filling with oil.
  13. Follow the Steps 15-19 before starting the engine.
    • Start the engine and allow to run for 10 minutes, stop the engine.
    • Check for leaks.
    15. CAUTION: Make sure that the selector lever and the gearshift mechanism are in the park (P) position.
    CAUTION: Make sure that the hood is open.
    • Turn the ignition on.
    • Scroll through the trip menu to access the engine oil level display.
    GJ0023401
    • Press the cruise control cancel button twice within 2 seconds.
    GJ0023402
    • The message center display will revert to the normal display in the trip computer.
    • Scroll through the trip menu to access the engine oil level display.
    • Check that the oil level display shows an oil level reading.
    • Only after having started and run the engine for 10 minutes (as indicated in Step 14), switch off the engine, then stabilizing for 10 minutes, take a reading from the oil level display and, if necessary top up with engine oil.
    GJ0023403
    19. NOTE: If instructed to follow Steps 15-19 in a previous step, return to Step 14 and continue the procedure.
  19. Turn the ignition off.
  20. Allow 10 minutes for the engine oil level to stabilize if there has been additional oil top up.
    21. NOTE: The following steps are to update the average oil level value.
    • Turn the ignition on.
    • Press and hold the cruise control cancel button for more than 2 seconds.
    G00531277
    • The message center display will revert to the normal display in the trip computer.
  23. Turn the ignition off.
  24. Turn the ignition on.
    • Scroll through the trip menu to access the engine oil level display.
    • Make sure that the average oil level value has now been updated.
    GJ0023403
  26. Refer to Air Deflector information.
