Cylinder Block

WARNING: This page is about a different car, the 2011 Jaguar XK and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR CARS, INC.

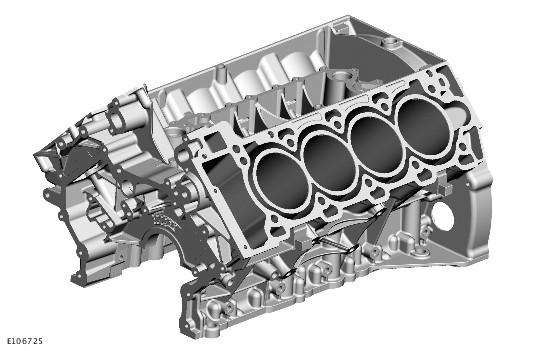

The cylinder block is a 90 degree configuration with cast-in iron cylinder liners and an open deck die-cast coolant jacket. The low volume coolant jacket gives good warm-up times and low piston noise levels. The longitudinal flow design of the coolant jacket, with a single cylinder head coolant transfer port in each bank, provides good rigidity and head gasket sealing.

The cylinders in each bank are numbered from 1 to 4, with number 1 at the front.

Engine Data Location

Courtesy of JAGUAR CARS, INC.

Item Number	Description
1	Engine data location

Engine data is marked on the cylinder block at the rear of the RH cylinder bank.
