Steering Column MULTIFUNCTION Switch LH: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

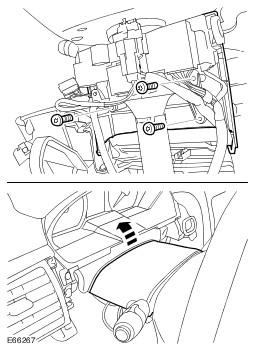

Remove the steering column lower cowl.
- Remove the 2 screws.
- If installed, disconnect the steering column and foot pedal control switch electrical connector.
Remove the steering column upper cowl.
- Remove the 3 screws.
Remove the steering column multifunction switch.
- Depress the 2 clips.
- Disconnect the electrical connector.
