Control Diagram
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

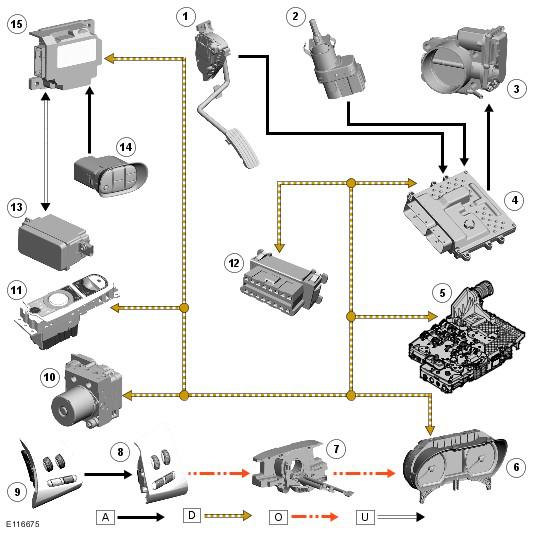

| Item Number | Description |
|---|---|
| 1 | APP sensor |
| 2 | Stoplamp switch |
| 3 | Electric throttle |
| 4 | ECM |
| 5 | TCM (transmission control module) |
| 6 | Instrument cluster |
| 7 | Clockspring |
| 8 | Steering wheel audio switches |
| 9 | Steering wheel speed control switches (adaptive speed control version shown) |
| 10 | ABS (anti-lock brake system) module |
| 11 | JaguarDrive selector |
| 12 | Diagnostic socket |
| 13 | Adaptive speed control sensor (adaptive speed control system only) |
| 14 | Forward alert switch (adaptive speed control system only) |
| 15 | Adaptive speed control module (adaptive speed control system only) |
NOTE:
A = Hardwired connection; D = High speed controller area network (CAN) bus; O = local interconnect network (LIN) bus; U = Private controller area network (CAN)
