Vacuum Pump
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

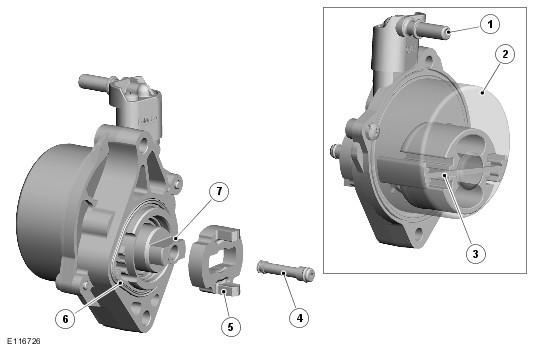

| Item Number | Description |
|---|---|
| 1 | Vacuum pipe connection |
| 2 | Cover |
| 3 | Vane |
| 4 | Oil tube |
| 5 | Drive gear |
| 6 | Seal |
| 7 | Rotor |
The vacuum pump is a mechanically driven vane pump installed on the front of the engine sump body and driven by the auxiliary camshaft. Two bolts attach the vacuum pump to the sump body. A seal is installed in a groove on the mating face of the vacuum pump.
The vacuum pump drive gear locates on the end of the rotor and engages with slots in the front of the auxiliary camshaft. An oil tube in the center of the rotor supplies engine oil from the auxiliary camshaft to lubricate the vacuum pump. Exhaust air from the vacuum pump is expelled into the engine sump through the sump body.
