Vacuum Pipes
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

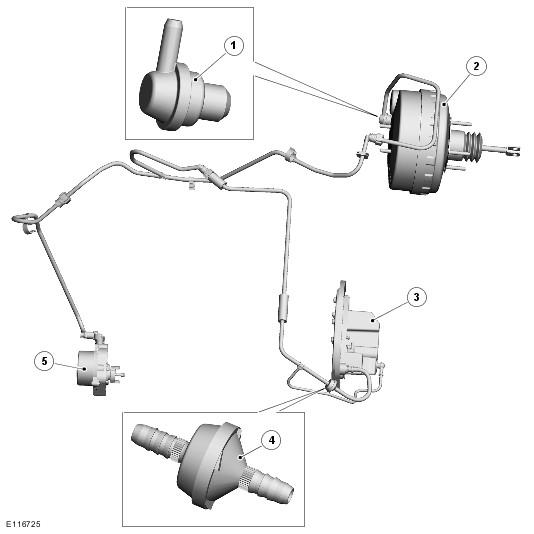

Right-hand drive (RHD) naturally aspirated installation shown, other installations similar.
| Item Number | Description |
|---|---|
| 1 | Brake booster connector/check valve |
| 2 | Brake booster |
| 3 | Intake manifold rear cover |
| 4 | In-line check valve |
| 5 | Vacuum pump |
Plastic pipes connect the brake booster to the intake manifold and the vacuum pump to provide the vacuum for the brake booster. The connection with the brake booster contains a check valve to maintain the vacuum in the brake booster. An in-line check valve near the connection with the intake manifold prevents air being drawn from the intake manifold and fuel vapor from entering the pipes.
