Component Location - Supercharger Vehicles

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Left-hand drive (LHD) installation shown, right-hand drive (RHD) installation similar.

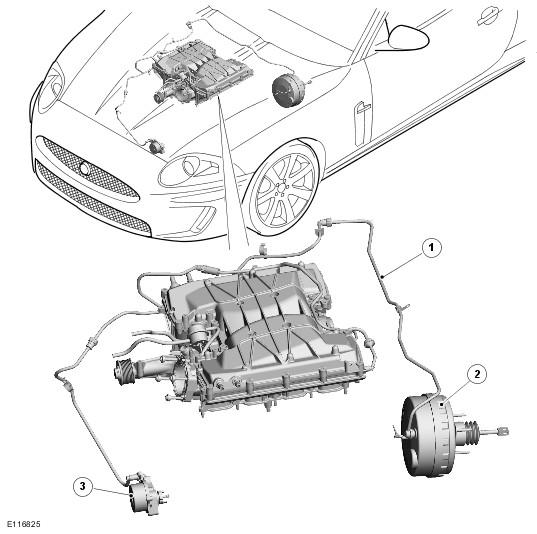

GJ0025663Courtesy of JAGUAR CARS, INC.
Item Number Description
1 Vacuum pipes
2 Brake booster
3 Vacuum pump
