Brake Pads - XK-RS Gt: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Do not use compressed air to clean brake components. Dust from friction materials can be harmful if inhaled.
WARNING: Brake pads must be renewed in axle sets only. Failure to follow this instruction may result in braking efficiency being impaired.
CAUTION: Take care not to contaminate the brake pad friction materials or the brake discs.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
    WARNING: WARNING: Make sure to support the vehicle with axle stands.
  1. Raise and support the vehicle.
  2. Remove 2 opposing wheel nuts.

    Torque: 125 Nm

    G00559039Courtesy of JAGUAR CARS, INC.
  3. Install the wheel guide tools. (Located in the vehicle tool kit.)

    Torque: 20 Nm

    G00559040Courtesy of JAGUAR CARS, INC.
    4. CAUTION: The brake disc can be easily damaged. Take extra care when removing and installing the wheel.
  4. Remove the remaining wheel nuts and slide the wheel and tire over the guide tools.

    Torque: 125 Nm

    G00559043Courtesy of JAGUAR CARS, INC.
  5. G00559056Courtesy of JAGUAR CARS, INC.

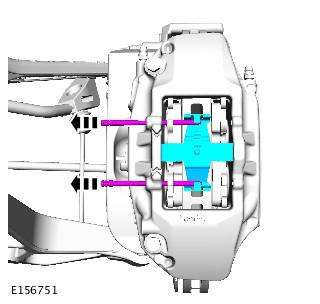

    6. NOTE: Note the orientation of the anti-rattle spring prior to removal.
  6. G00559057Courtesy of JAGUAR CARS, INC.
    7. CAUTION: The brake disc can be easily damaged. Do not strike or lever on the brake disc.
    NOTE: Note the orientation of the anti-rattle spring prior to removal.

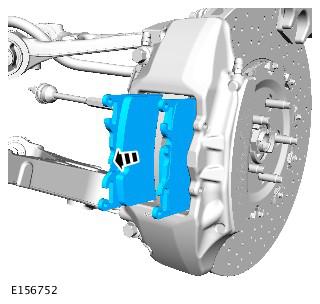

  7. Remove the brake pads.
    G00559058Courtesy of JAGUAR CARS, INC.
    8. NOTE: Note the orientation of the anti-rattle spring prior to removal.
  8. G00559059Courtesy of JAGUAR CARS, INC.
  9. Inspect the caliper pistons, seals and brake discs for damage.
    G00559060Courtesy of JAGUAR CARS, INC.
  10. Clean and inspect the brake caliper at the brake pad contact points.
    G00559061Courtesy of JAGUAR CARS, INC.
    11. CAUTION: Check the brake fluid reservoir level before pushing the piston back, failure to follow this instruction may result in damage to the vehicle.
    CAUTION: The brake disc can be easily damaged. Do not strike or lever on the brake disc.
    NOTE: As the piston is pushed back into the caliper housing, the brake fluid level in the reservoir will rise. Do not allow the reservoir to overflow.
  11. Press the pistons into the caliper housing.
  12. Repeat this procedure for the other side.
