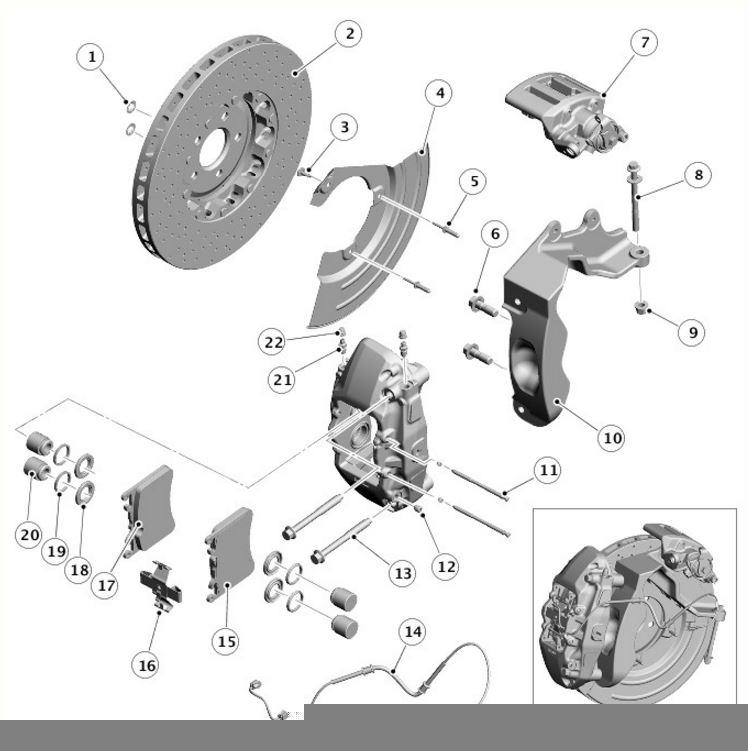

Component Location
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Right-hand (RH) supercharger (SC) vehicle installation shown, other installations similar.
| Item Number | Description |
|---|---|
| 1 | Retaining washer (2 off) |
| 2 | Carbon ceramic disc |
| 3 | Bolt |
| 4 | Dust shield |
| 5 | Rivet (2 off) |
| 6 | Caliper bolt (2 off) |
| 7 | Park Brake caliper |
| 8 | Toe link bolt |
| 9 | Toe link nut |
| 10 | Caliper carrier |
| 11 | Brake pad retaining pins (2 off) |
| 12 | Blanking plug |
| 13 | Caliper bolt (2 off) |
| 14 | Brake pad wear sensor |
| 15 | Inboard brake pad |
| 16 | Brake pad retainer |
| 17 | Outboard brake pad |
| 18 | Piston dust cover (4 off) |
| 19 | Piston seal (4 off) |
| 20 | Piston (4 off) |
