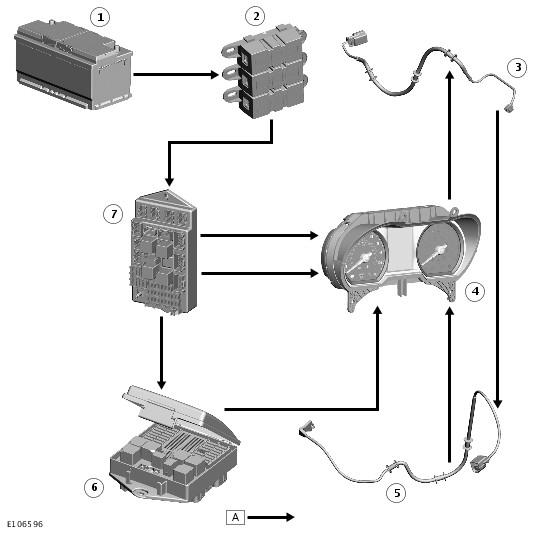

Control Diagram
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A
= Hardwired
 Courtesy of JAGUAR CARS, INC.
|
| Item Number |
Description |
| 1 |
Battery |
| 2 |
BJB (battery junction box) (175 A megafuse) |
| 3 |
Front brake pad wear sensor |
| 4 |
Instrument cluster |
| 5 |
Rear brake pad wear sensor |
| 6 |
Power distribution box |
| 7 |
CJB (central junction box) |
