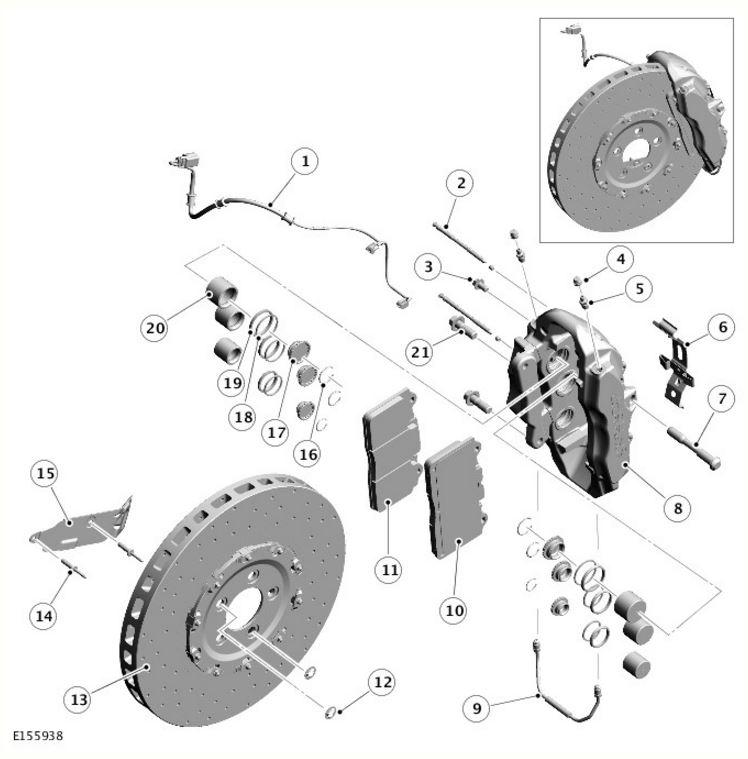

Component Location - Carbon Ceramic Discs
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH (left-hand) installation shown, RH (right-hand) installation similar.
| Item Number | Description |
|---|---|
| 1 | Brake pad wear sensor |
| 2 | Brake pad retaining pins - 2 off |
| 3 | Caliper bridge pin bolt |
| 4 | Bleed screw dust cap |
| 5 | Bleed screw |
| 6 | Brake pad retainer |
| 7 | Caliper bridge pin |
| 8 | Caliper body |
| 9 | Brake disc |
| 10 | Outboard brake pad |
| 11 | Inboard brake pad |
| 12 | Brake disc retaining bolts (2 off) |
| 13 | Carbon ceramic disc |
| 14 | Rivet (2 off) |
| 15 | Heat shield |
| 16 | Cooling duct plate clip (6 off) |
| 17 | Cooling duct plate (6 off) |
| 18 | Piston dust cover (6 off) |
| 19 | Piston seal (6 off) |
| 20 | Piston (6 off) |
| Caliper bolt (2 off) | |
