Power Steering System Filling: Draining
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
- See figure
- Raise and support the vehicle.
- Refer to Air Deflector information.
-

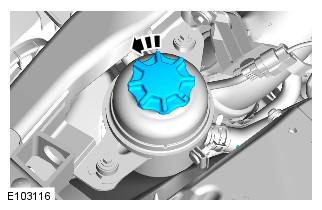

- Using a syringe, remove the PAS fluid from the reservoir.
- See figure
WARNING:
Make sure to support the vehicle with axle stands.
CAUTION:
Make sure that the area around the component is clean and free of foreign material.
CAUTION:
Be prepared to collect escaping fluids.
