Subwoofer Speaker: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel assembly. Refer to Instrument Panel information.
  2. Remove the heater duct.
    • Remove the 2 Torx screws.
    • Release the lampholder.
    GJ0009327
    3. CAUTION: Make sure the wiring harness and electrical connectors are not damaged during the carpet release.
  3. Carefully release the carpet for access.
  4. Remove the subwoofer cover.
    • Remove the 4 bolts.
    GJ0009328
    5. NOTE: Do not disassemble further if the component is removed for access only.
  5. Remove the subwoofer.
    • Remove the 4 screws.
    • Disconnect the 2 electrical connectors.
    GJ0009335
  6. Remove the amplifier.
    • Remove the 4 Torx screws.
    GJ0009329

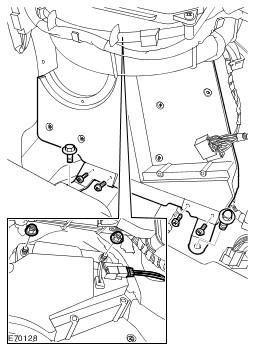

  7. Release the subwoofer speaker housing
    • Remove the 2 nuts.
    • Remove the 2 bolts.
    • Remove both speaker housing support brackets.
    GJ0009336
    8. CAUTION: Cover fibre optic cable connectors to minimize dust ingress and avoid bending the cables in a radius of less than 30 mm.
  8. Remove the subwoofer speaker housing.
    • Carefully disconnect the MOST connector.
    • Disconnect the 3 electrical connectors.
