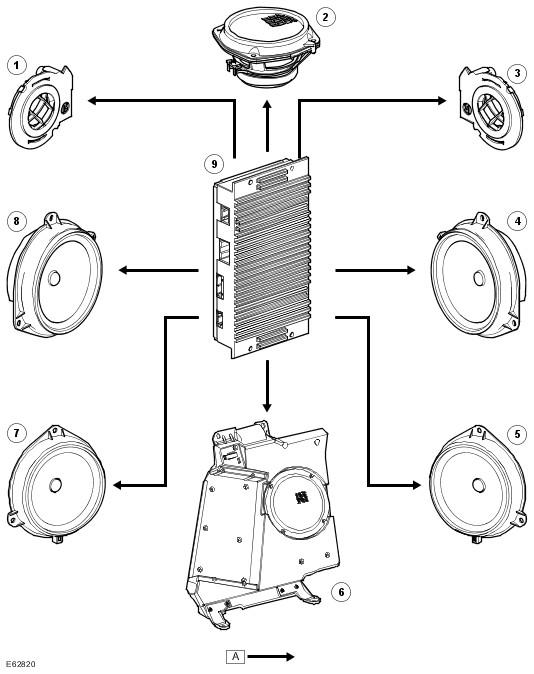

Control Diagram-Premium Audio System
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR CARS, INC.
|
| Item Number |
Description |
| 1 |
Front LH high range speaker |
| 2 |
Center speaker |
| 3 |
Front RH high range speaker |
| 4 |
Front RH mid/low range speaker |
| 5 |
Rear RH mid/low range speaker |
| 6 |
Subwoofer |
| 7 |
Rear LH mid/low range speaker |
| 8 |
Front LH mid/low range speaker |
| 9 |
Power amplifier |
NOTE:
A=Hardwired
