Rear SUBFRAME Front Bushing: Installation

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

NOTE: Align to the position noted on removal.

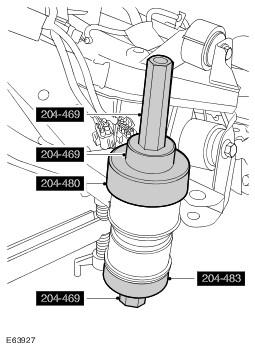

Using the special tools, Install the new front bushings.

Vehicles with 4.2L engine

Install the rear subframe. Refer to Rear Subframe - 4.2L . .

Vehicles with 5.0L engine

Install the rear subframe. Refer to Rear Subframe - 5.0L .

All vehicles

Connect the battery ground cable. Refer to Specifications information.
