Front Stabilizer Bar: Removal
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Raise and support the vehicle.
- Refer to Wheel and Tire information.
- On both sides.
- Refer to Air Deflector - 5.0L information.

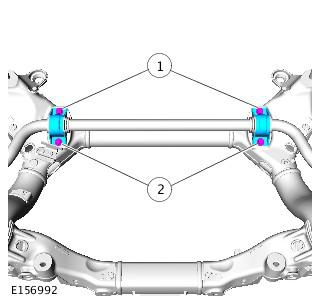

- See figure
- See figure
- During installation tighten the bolts in the following sequence.
- Bolt 1 55 Nm
- Bolt 2 55 Nm
- Bolt 1 55 Nm
Torque:
- See figure
- See figure
WARNING:
Make sure to support the vehicle with axle stands.
CAUTION:
Discard the nuts.
NOTE:
LH illustration shown, RH is similar.
