Front Lower Arm Bushing: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal and installation of the bush requires the use of a press.
  1. Visually inspect the lower arm for signs of a center punch mark. If four marks are located on the lower arm in the area illustrated, install a new front lower arm.
    G00532079
  2. Only continue with the procedure below if there is less than four marks on the lower front arm.

    Refer to Front Lower Arm .

  3. Measure and note the value both sides of the bush as illustrated prior to removal.
    G00532080

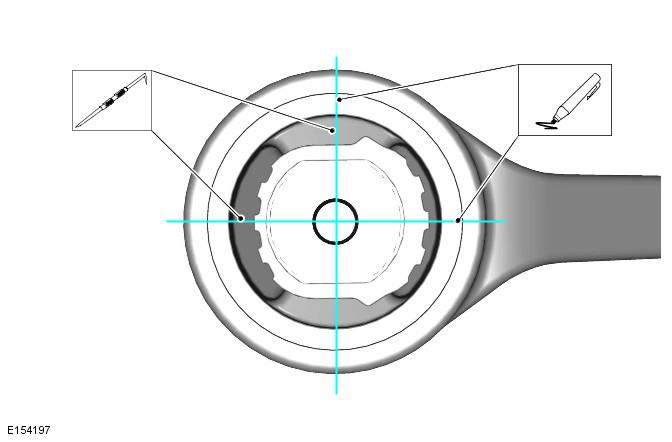

    4. CAUTION: Note the orientation of the bush prior to removal.
  4. Using suitable marking tools, mark the bush and lower arm prior to removal.
    G00532085

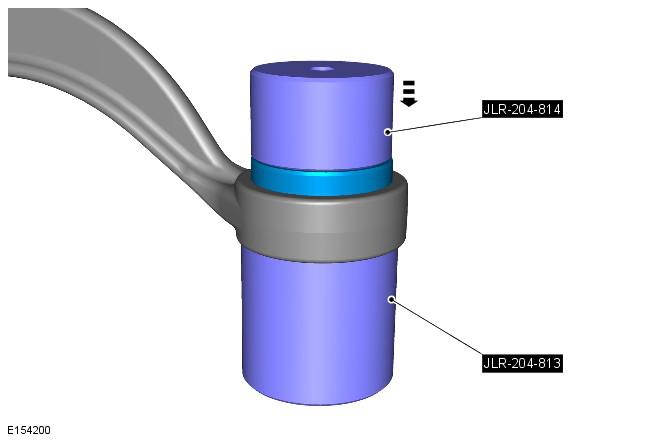

  5. Using the special tools, remove the bush.

    Special Tool(s): Remover/Installer, Lower Arm Bush (JLR-204-813), Remover/Installer, Lower Arm Bush (JLR-204-814)

    General Equipment: Hydraulic press

    G00532084
