Front Lower Arm Bushing: Installation

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Make sure that the bush is correctly seated in the special tool.

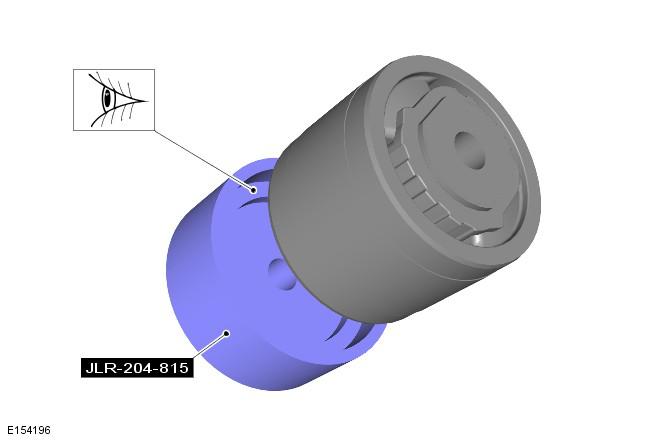

  1. Special Tool(s): Remover/Installer Lower Arm Bush (JLR-204-815)
    G00532083
  2. Using the special tools, remove the bush.

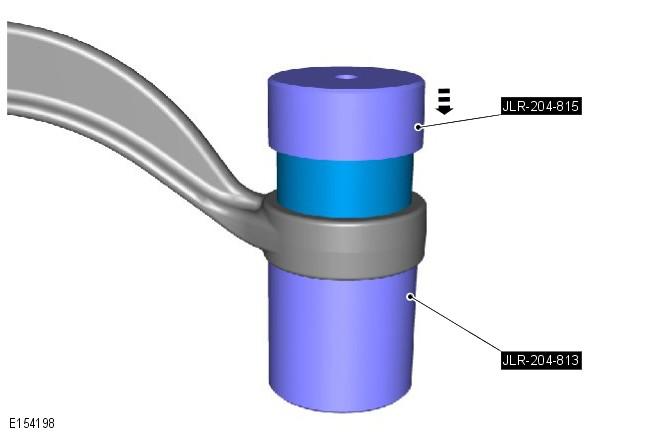

    Special Tool(s): Remover/Installer, Lower Arm Bush (JLR-204-813), Remover/Installer Lower Arm Bush (JLR-204-815)

    General Equipment: Hydraulic press

    G00532082

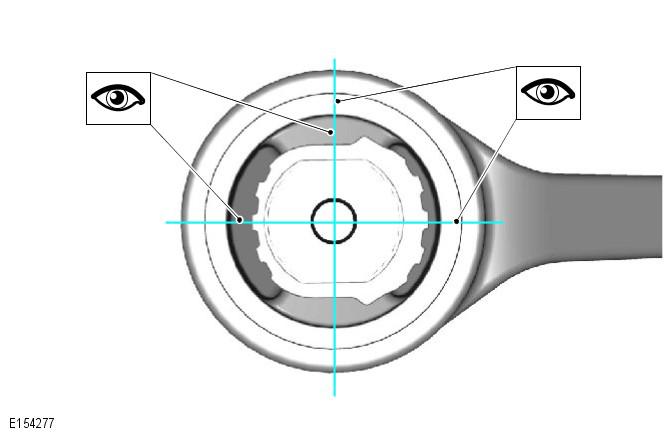

  3. Make sure that the bush has been installed to the noted removal position.
    G00532081
  4. Make sure that measurement taken prior to removal is still correct.
    G00532080

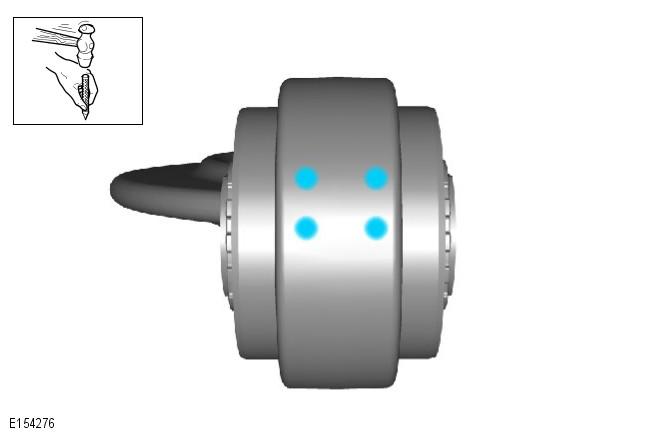

  5. Mark the front lower arm with a center punch, once the procedure has been completed.

    General Equipment: Center punch

    G00532079
  6. Refer to Front Lower Arm .
