Air Conditioning (A/C) Compressor (V8 5.0L Petrol/V8 S/C 5.0L Petrol): Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to Battery Disconnect and Connect information.
    2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
  2. Raise and support the vehicle.
  3. Refer to Air Conditioning (A/C) System Recovery, Evacuation and Charging information.
  4. See figure.
    GJ0012522
  5. Torque: 8 Nm.
    GJ0023315
    6. CAUTION: Immediately cap all refrigerant lines to prevent ingress of dirt and moisture.
    CAUTION: Make sure that all openings are sealed. Use new blanking caps.
  6. Torque: 9 Nm.

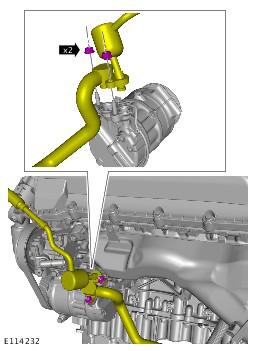

    GJ0022949
  7. See figure.
    GJ0013136
    8. CAUTION: Make sure that all openings are sealed. Use new blanking caps.
    CAUTION: Take care not to damage the O-ring seals during installation.
  8. Torque: 25 Nm.
    GJ0012846
