Luggage Compartment Lid: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the luggage compartment lid trim panel.
  2. Disconnect the 4 luggage compartment lid harness electrical connectors.

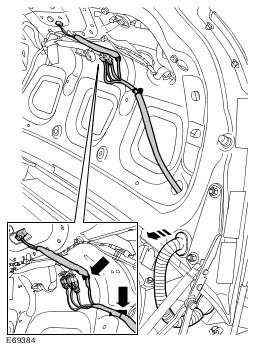

  3. Release the wiring harness.
    • Remove the electrical harness clip.
      GJ0010007
  4. Release the electrical harness.
    • Release the electrical harness clip.
  5. Release the clips and disconnect the struts.
    GJ0010008
  6. With assistance, remove the luggage compartment lid.
    • Remove the 4 nuts.
      GJ0010009
    7. NOTE: Do not disassemble further if the component is removed for access only.
  7. Remove the luggage compartment lid latch operating cable from the lock cylinder.
    • Release the cable from the clip.
      GJ0010010
  8. Remove the luggage compartment lid latch assembly.
    • Remove the 3 Torx bolts.
      GJ0010011

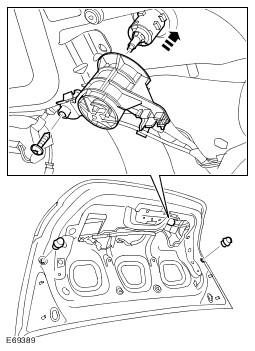

  9. Remove the bump stops.
  10. Remove the luggage compartment lid lock cylinder.
    GJ0010012
  11. Remove the rear spoiler.
    • Disconnect the electrical connector.
    • Release the 3 wiring harness clips.
    • Remove the 2 bolts.
    • Release the 9 clips.
      GJ0010013
  12. Remove the license plate lamp housing.

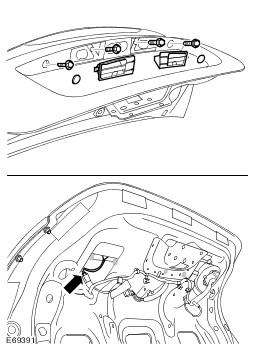

  13. Remove the luggage compartment lid finisher.
    • Disconnect the license plate lamp electrical connector.
    • Remove the grommets.
    • Remove the 4 bolts.
    • Release the 4 clips.
    • Release the 4 clips.
      GJ0010014
  14. Remove both rear lamp assemblies.
    • Remove the 6 nuts.
    • Disconnect the 2 electrical connectors.
      GJ0010015
  15. Remove the luggage compartment lid wiring harness.
    • Release the 8 wiring harness securing clips.
      GJ0010016
  16. Remove the luggage compartment lid decals.
    • Wipe the luggage compartment lid to remove all traces of the adhesive.
    • Polish the area to remove any bleaching.
