Removal And Installation: Liftgate: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate lower trim panel. Refer to Liftgate Lower Trim Panel information.
  2. Disconnect the rear screen electrical connectors.
  3. Release the body harness from the liftgate.
    • Release the 15 clips.
    • Disconnect the 5 electrical connectors.
    • Release the 2 harness grommets and withdraw the harness from liftgate.

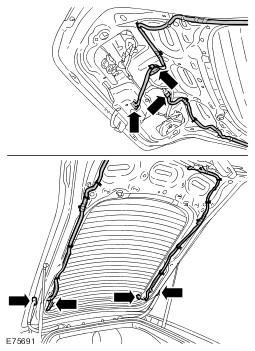

      GJ0010458
    4. NOTE: Support the lifgate as necessary.
  4. Release the liftgate support struts.
    • Release the 2 clips.
      GJ0010459
  5. With assistance, remove the liftgate.
    • Remove the 4 Torx bolts.
      GJ0010453
