Removal And Installation: Hood: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
  1. With assistance, remove the hood.
    • Release the clips and disconnect the struts.
    • Remove the 8 nuts.
      GJ0009557
    2. NOTE: Do not disassemble further if the component is removed for access only.
  2. Remove the hood seal end caps.
    • Release from the 4 clips.
  3. Remove the hood seal.
    • Release the hood seal.
    • Remove the 17 clips.
      GJ0009558
  4. Remove the hood pad.
    • Remove the 23 clips.
      GJ0009559

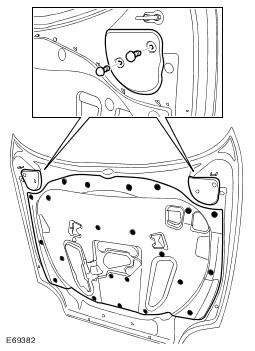

  5. Remove the 2 secondary hood pads.
    • Remove the 4 clips.
      GJ0009559
