Luggage Compartment Lid Alignment
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the luggage compartment floor panel.
- Remove the luggage compartment lid striker panel.
- Remove the luggage compartment striker.
- Remove the luggage compartment aperture seal.

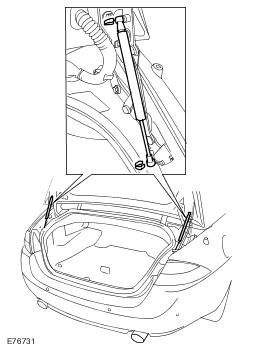

- Remove the luggage compartment lid struts.
- Loosen the luggage compartment lid hinge fixings.
- Make sure the gaps between the luggage compartment lid are all 3.5 mm.
- Make sure the luggage compartment lid to rear bumper gap is 6.8 mm.
- Tighten the luggage compartment lid hinge nuts to 23 Nm (17 lb.ft).
- Loosen the luggage compartment lid hinge to body fixings.
- Make sure the gaps between the luggage compartment lid are all 3.5 mm.
- Tighten the luggage compartment lid hinge to body bolts, to 23 Nm (17 lb.ft).
- Install the luggage compartment lid support struts.
- Secure the 4 clips.
- With the luggage compartment lid closed, check the profile of the luggage compartment lid to convertible top compartment lid, and luggage compartment lid to rear body side is flush; adjust as necessary.
- Install the luggage compartment lid aperture seal.
- Install the luggage compartment lid striker.
- Install the luggage compartment lid striker trim panel.
- Install the 4 Torx screws
- Install the luggage compartment floor panel.
