Liftgate Alignment

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check the gap and profiles of the liftgate are correct. Refer to Body and Frame information.
  2. Remove the loadspace floor panel.
  3. Remove the scuff plate trim panel.
    • Remove the 4 Torx bolts.
      GJ0009062
  4. Remove the liftgate hinge cover.
    • Remove the 8 clips.
      GJ0010452
  5. Loosen the liftgate striker.
    • Loosen the 2 Torx bolts.
      GJ0010444
  6. Loosen the liftgate to hinge Torx bolts.

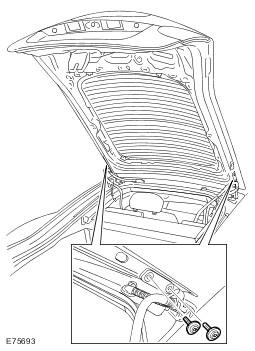

    GJ0010453
  7. With the liftgate closed, check the alignment of the liftgate to the roof panel. Profile of the liftgate to roof panel should be 2 mm below flush.
    GJ0010454
  8. Tighten the liftgate to hinge Torx bolts to 25 Nm (18 lb.ft).
  9. Loosen the liftgate hinge to body nuts.

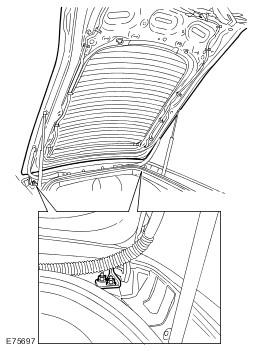

    GJ0010455
  10. With the liftgate closed, check the alignment of the liftgate to the roof panel and bodyside panel. The liftgate should be central in its aperture.
    GJ0010456
  11. Tighten the liftgate hinge to body nuts to 25 Nm (18 lb.ft).
  12. Secure the liftgate striker.
    • Tighten the Torx bolts to 25 Nm (18 lb.ft).
  13. Install the scuff plate trim panel.
    • Install the 4 Torx screws
  14. With the liftgate closed, check the profile of the liftgate to the bodyside panel. Adjust as required.
    GJ0010457
  15. Install the liftgate hinge cover.
    • Secure with the clips.
  16. Install the loadspace floor panel.
