Rear Bumper Cover: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Always protect paintwork and glass when removing exterior components.

    All vehicles

    WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
  1. Raise and support the vehicle.
  2. Remove both rear wheels and tires. Refer to Wheel and Tire information.
  3. Remove the LH rear quarter trim panel. Refer to Loadspace Trim Panel - Vehicles Without: Convertible Top information.
  4. Remove the RH rear quarter trim panel.
    • Remove the clip.
    • Disconnect the electrical connector.
      GJ0010237

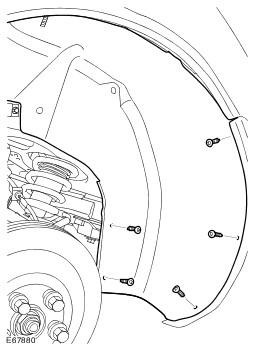

  5. Release the rear lower edge of the LH fender splash shield.
    • Remove the 5 Torx screws.
    • Tie the splash shield aside.
    • Repeat the above procedure for the other side.
      GJ0010238

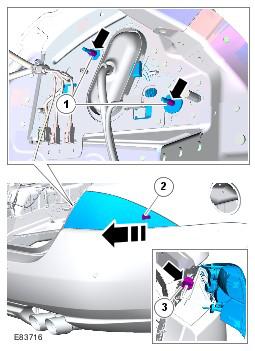

    6. CAUTION: Take great care when removing the rear lamp assembly as the forward point of the lens can be easily damaged.
  6. Remove the rear lamp assembly.
    • Remove the 2 nuts.
    • Carefully release the clip.
    • Disconnect the electrical connector.
    • Repeat the above procedure for the other side.
      GJ0008922
    7. NOTE: Naturally aspirated graphic shown, supercharged is similar.
  7. Remove 4 clips from the lower edge of the bumper cover.
    GJ0010239
  8. Remove 3 bolts from the LH rear wheel arch.
    • Repeat the above procedure for the other side.
      GJ0010240
  9. Remove 2 bolts from the LH inner quarter panel.
    • Repeat the above procedure for the other side.
  10. Disconnect the bumper harness electrical connector.
    GJ0010241

    11. Vehicles with supercharger

  11. Release the exhaust sound enhancement vacuum pump assembly.
    • Remove the bolt.
    • Disconnect the 2 electrical connectors.
    • Release the wiring harness clip.
      GJ0010242

    12. All vehicles

  12. With assistance, remove the rear bumper cover.
    • Remove the 6 bolts.
    • Release the wiring harness grommet.
    • Release the harness.
      GJ0010243
    13. NOTE: Do not disassemble further if the component is removed for access only.
  13. Remove the LH tire pressure antenna.
    • Disconnect the electrical connector.
    • Remove the 2 clips.
    • Repeat the above procedure for the other side.
      GJ0010244
  14. Remove the bumper harness.
    • Disconnect the 4 electrical connectors.
    • Carefully release the 10 clips.
      GJ0010245
  15. Remove the bumper insert.
    • Remove the 2 clips.
      GJ0010246
  16. Remove the parking aid sensor.
    • Release the 2 clips.
    • Repeat the above for the other 3 sensors.
      GJ0010247
  17. Remove the lower trim panel.
    • Remove the 2 bolts.
      GJ0010248

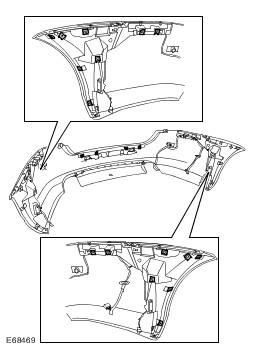

  18. Remove the 20 clips.
    GJ0010249
