Front Bumper: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
    WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
  1. Raise and support the vehicle.
  2. Remove the cover and disconnect the battery ground cable. Refer to Specifications information.
  3. Remove the front bumper cover. See Front Bumper Cover . .
  4. Remove the crush pad.
    • Remove the 3 clips.
    • Vehicles with a pedestrian impact sensor only: Remove 2 additional bolts.
      GJ0010220
  5. Remove the air deflector.
    • Remove the 3 clips.
    • Repeat the procedure and remove the opposite hand.
      GJ0010221

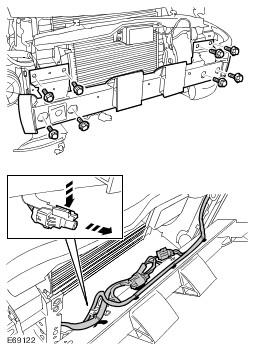

  6. Remove the front bumper.
    • Remove the 8 bolts.
    • Release the 9 clips.
    • Disconnect the electrical connector.
    7. NOTE: Do not disassemble further if the component is removed for access only.
  7. Remove the ambient air temperature sensor.
    GJ0010222
