Front Bumper Cover: Removal
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Refer to Battery Disconnect and Connect information.
- Raise and support the vehicle.
- Refer to Radiator Splash Shield information.
- Torque: 4 Nm
- Torque: 4 Nm
- Torque: 4 Nm

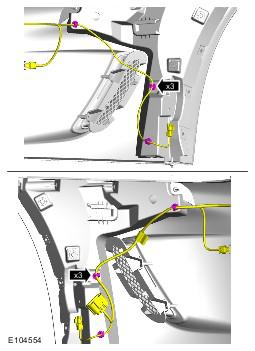

- See figure
- Torque: 4 Nm

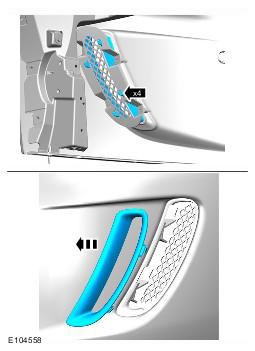

- See figure
- See figure
- See figure
- See figure
- See figure
- Drill out the 3 rivets
- See figure
- See figure
- See figure
- See figure
- See figure
WARNING:
Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
NOTE:
Left-hand shown, right-hand similar.
NOTE:
Left-hand shown, right-hand similar.
NOTE:
Left-hand shown, right-hand similar.
CAUTION:
Always protect paintwork and glass when removing exterior components.
NOTE:
Do not disassemble further if the component is removed for access only.
NOTE:
Left-hand shown, right-hand similar.
CAUTION:
Protect the surrounding paintwork to avoid damage.
NOTE:
Left-hand shown, right-hand similar.
NOTE:
Left-hand shown, right-hand similar.
