Convertible Top Material: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the convertible top headliner. See Convertible Top Headliner .
    2. NOTE: Note the fitted position of the spacers
  2. Remove the convertible top front seal carriers.
    • Remove the 4 screws.
    • Release the seal.
    • Remove and discard the 6 Torx bolts.
    • Collect the spacers.

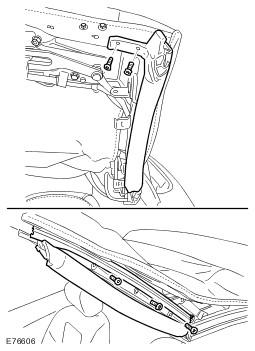

      GJ0010466
  3. Remove the convertible top side seal carriers.
    • Release the seal.
    • Drill out the 6 rivets.
      GJ0010467
  4. Carefully release the convertible top outer material from the rear seal.
    GJ0010468
    5. NOTE: Note the routing of the convertible top tension cables.
  5. Release the convertible top tension cables.
    • Remove and discard the 4 clips.
    • Release the tension cables from the convertible top frame.
    • Withdraw from the convertible top material.

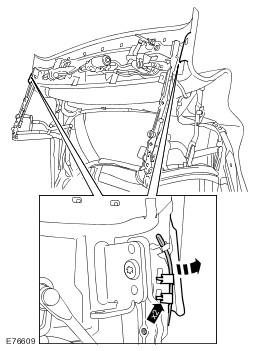

      GJ0010469

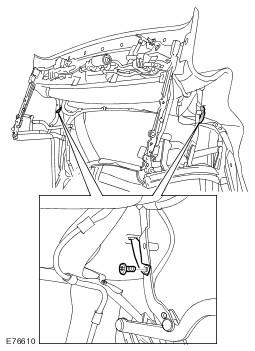

  6. Release the convertible top retaining straps.
    • Remove the 2 Torx bolts.
      GJ0010470
  7. Release the front edge of the convertible top material.
    • Remove the 5 Torx screws.
      GJ0010471
  8. Remove the convertible top outer material.
    • Release the convertible top material from the frame.
      GJ0010472
