Convertible Top Latch: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the header rail upper trim panel. See Header Rail Upper Trim Panel .
  2. Release the convertible top locking mechanism rod.
    • Remove the retaining clip.
    3. NOTE: Electrical connector is installed on the LH latch only.
  3. Release the convertible top latch assembly.
    • Disconnect the electrical connector.

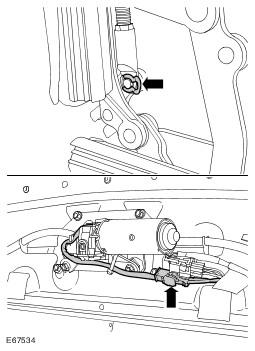

      GJ0010024
  4. Remove the convertible top latch assembly.
    • Remove the 4 nuts.
    • Release the drive cable.
      GJ0010025
