Convertible Top Compartment Lid: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the convertible top to the position shown.
    • Depress the switch.
    • Support as necessary.
      GJ0009503

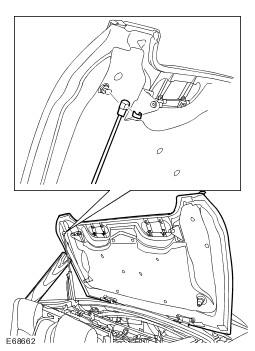

  2. Release the convertible top compartment lid lift cylinder.
    • Release the clip.
  3. With assistance, remove the convertible top compartment lid.
    • Remove the 4 bolts.
      GJ0010213
  4. Remove the convertible top compartment lid buffers.
    • Release the clips.
      GJ0010214
  5. Remove the convertible top compartment lid pad.
    • Remove the 11 clips.
      GJ0010215
  6. Remove the convertible top compartment lid lift cylinder spigot.
    GJ0010216
  7. Remove the convertible top compartment lid strikers.
    • Remove the 4 bolts.
      GJ0010217

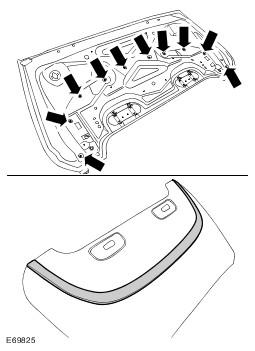

  8. Remove the convertible top compartment molding.
    • Remove the 10 nuts.
      GJ0010218

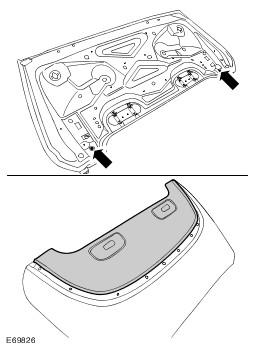

  9. Remove the convertible top compartment trim panel.
    • Remove the 2 Torx bolts.
    • Release from the 8 clips.
      GJ0010219
