Convertible Top Compartment Lid Molding: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the convertible top to the position shown.
    • Depress the switch.
    • Support as necessary.
      GJ0010032
  2. Remove the convertible top compartment lid buffers.
    • Release the clips.
      GJ0010264
  3. Remove the convertible top compartment lid pad.
    • Remove the 11 clips.
      GJ0010265

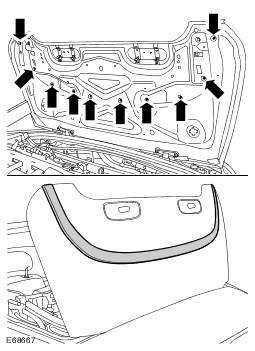

  4. Remove the convertible top compartment molding.
    • Remove the 10 nuts.
      GJ0010266
