Convertible Top Compartment Lid Lift Cylinder: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the convertible top to the position shown.
    • Depress the switch.
    • Support as necessary.
      GJ0010032
  2. Remove the convertible top hydraulic pump access panel
    • Release the clip.
      GJ0010034
    3. CAUTION: Do not loosen the Allen bolt more than 2 complete turns. Failure to follow this instruction may result in damage to the vehicle.
    NOTE: The ignition must be switched off.
  3. Release the convertible top system pressure.
    • Loosen the Allen bolt up to a maximum of 2 complete turns.
      GJ0010028

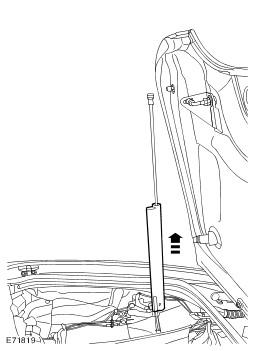

  4. Remove the convertible top compartment lid lift cylinder cover.
    • Release the clip.
    • Release the lift cylinder
      GJ0009611

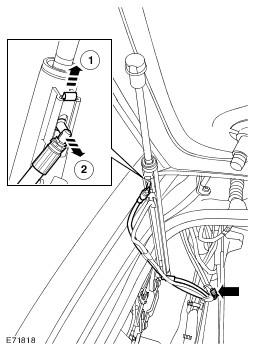

  5. Release the convertible top compartment lid lift cylinder.
    • Disconnect the 2 fluid lines.
    • Disconnect the electrical connector.
      GJ0009612

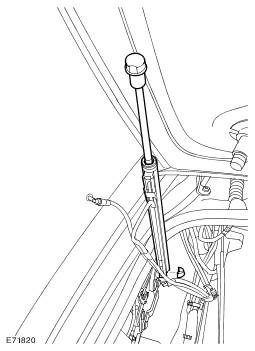

  6. Remove the convertible top compartment lid lift cylinder.
    • Release the clip.
      GJ0010386
