Convertible Top Assembly: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear quarter trim panels. Refer to Rear Quarter Trim Panel - Vehicles With: Convertible Top information.
Remove the RH loadspace trim panel. Refer to Loadspace Trim Panel - Vehicles With: Convertible Top information.

CAUTION: Do not loosen the Allen bolt more than 2 complete turns. Failure to follow this instruction may result in damage to the vehicle.

NOTE: The ignition must be switched off.

Release the convertible top system pressure.
- Loosen the Allen bolt up to a maximum of 2 complete turns.
Disconnect the convertible top hydraulic pump electrical connectors.
Release the convertible top hydraulic pump.
- Remove the 3 bolts.
Close the convertible top to the position shown.
Release the convertible top fluid lines and harness.
- Disconnect the electrical connector.
- Release the 2 fluid line and harness clips.

NOTE: Support the convertible top compartment lid.

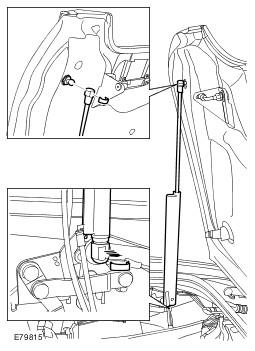

Release the convertible top compartment lid RH lift cylinder.
- Release the 2 clips.
Open the convertible top to the position shown.

CAUTION: Under no circumstances must the base plate fixing nuts be loosened or removed. Each base plate fixing nut can be identified by a large aluminum spacer.

NOTE: This step requires the aid of other technicians.

Remove the convertible top assembly.
- Disconnect the 2 electrical connectors.
- Remove the 8 nuts.
