F - Tonneau Panel Switch 2
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR CARS, INC.
|

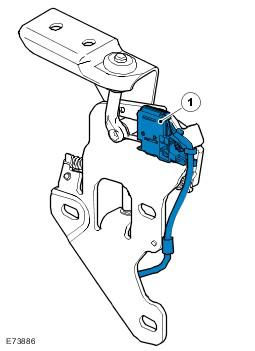

| Item Number |
Description |
| 1 |
Tonneau panel switch |
Tonneau panel switch 2 is located on the LH latch base plate assembly. This switch is a normally open microswitch that, when switched to ground, informs the control module that the LH side of the tonneau panel is closed.
