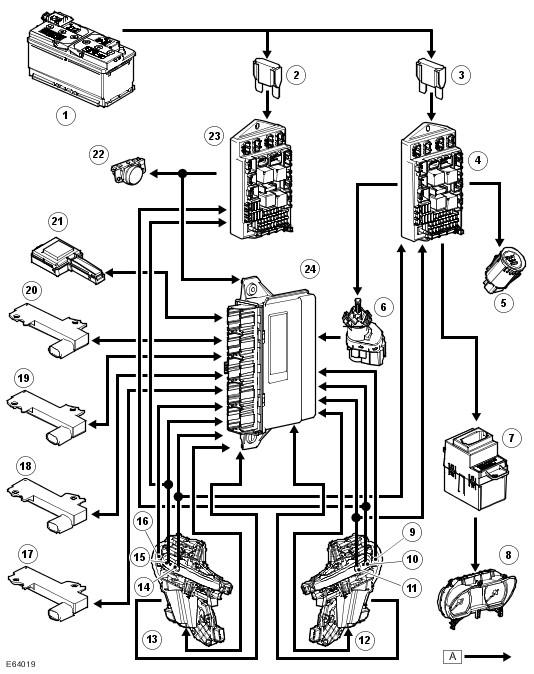

Control Diagram - Passive Entry System
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A
= Hardwired
| Item Number | Description |
|---|---|
| 1 | Battery |
| 2 | Megafuse (175A) |
| 3 | Megafuse (175A) |
| 4 | CJB |
| 5 | Start/Stop switch |
| 6 | Stop lamp switch |
| 7 | Start control module |
| 8 | Instrument cluster |
| 9 | LF antenna (LH exterior door handle - only with passive entry option fitted) |
| 10 | Unlock pull switch |
| 11 | Lock push switch |
| 12 | LH Door handle, latch motor and clutch |
| 13 | RH door handle, latch motor and clutch |
| 14 | Lock push switch |
| 15 | Unlock pull switch |
| 16 | LF antenna (RH exterior door handle - only with passive entry option fitted) |
| 17 | LF antenna (rear bumper - only with passive entry option fitted) |
| 18 | LF antenna (battery bracket) |
| 19 | LF antenna (center console) |
| 20 | LF antenna (Instrument panel) |
| 21 | RF remote receiver |
| 22 | Exterior liftgate release switch |
| 23 | Auxiliary junction box |
| 24 | Keyless vehicle module |
