Emergency Park Position Release Lever: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to Battery Disconnect and Connect information.
    2. WARNING: Make sure to support the vehicle with axle stands.
  2. Raise and support the vehicle.
  3. Refer to Floor Console - 5.0L information.
  4. Torque: 11 Nm

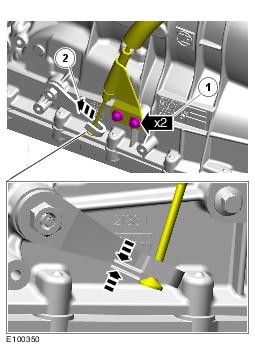

    GJ0011049
  5. Torque: 25 Nm
    GJ0025416
  6. Torque: 10 Nm
    GJ0025417
    7. CAUTION: Make sure that the cable is correctly routed.
    NOTE: Note the routing of the emergency park brake release cable.
  7. See figure
    GJ0025418
  8. See figure
    GJ0025419
    9. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  9. See figure

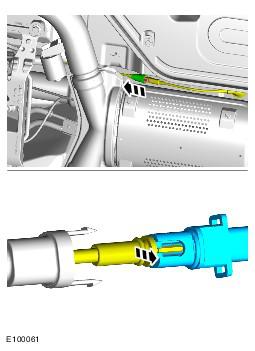

    GJ0011052
  10. Torque: 6 Nm
    GJ0025420
