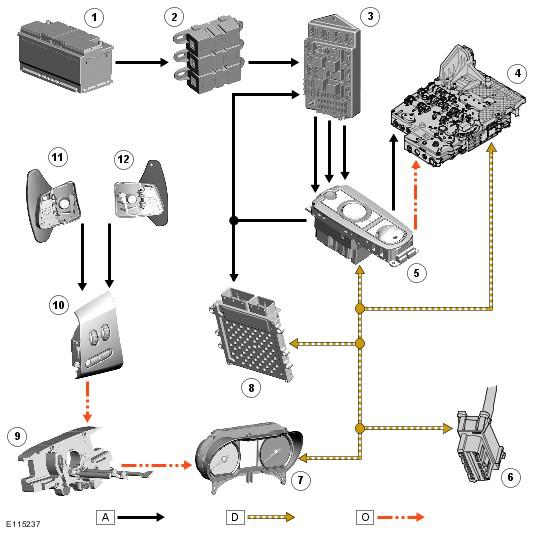

Control Diagram
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A = Hardwired; D = High speed controller area network (CAN) bus; O = local interconnect network (LIN) bus
| Item Number | Description |
|---|---|
| 1 | Battery |
| 2 | BJB (battery junction box) (175 A megafuse) |
| 3 | CJB (central junction box) |
| 4 | TCM |
| 5 | JaguarDrive selector |
| 6 | Diagnostic socket |
| 7 | Instrument cluster |
| 8 | ECM |
| 9 | Steering wheel audio switch |
| 10 | Clockspring |
| 11 | Downshift paddle switch |
| 12 | Upshift paddle switch |
