Component Location

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

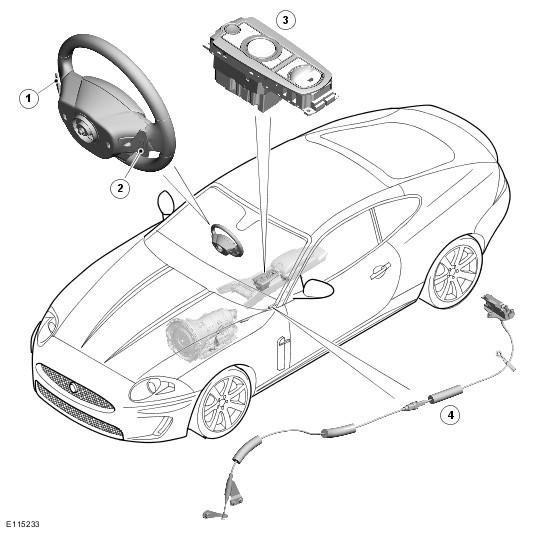

GJ0025561Courtesy of JAGUAR CARS, INC.
Item Number Description
1 Upshift (+) paddle switch
2 Downshift (-) paddle switch
3 JaguarDrive selector
4 Emergency park release
