Rear Quarter Window Glass - (Vehicles Without: Convertible Top): Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

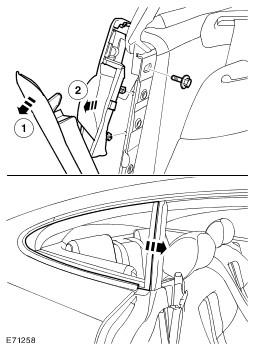

  1. Release the door aperture seal.
    • Release from the 2 clips.
  2. Remove the rear quarter window glass.
    • Remove the bolt.
    GJ0009609
