Front Door Window Glass: Installation

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front door window glass.
    • Attach the clamp and rubber washer.
    • Install the Torx bolts, but do not tighten fully at this stage.
    2. NOTE: The window must be fully raised when carrying out measurements.

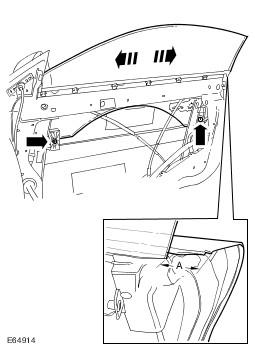

  2. Align the front door window glass longitudinally.
    • Position the window, forwards or rearwards, glass edge should be 44mm from edge of door as shown in dimension 'A'.
    • Tighten the Torx bolts to 8 Nm (6 lb.ft).
    GJ0009321
    3. NOTE: To adjust the window hold the locknut and turn the center spindle.
  3. Align the front door window glass horizontally.
    • Release the retaining nut.
    • Align the glass to door, glass should be 12mm from door as shown in dimension 'B'.
    • Tighten the retaining nut to 10 Nm (7 lb.ft).
    GJ0009322
  4. Install the front door inner weathershield.
    • Attach the front door interior handle cable.
    • Tighten the Torx bolt to 10 Nm (7 lb.ft).
  5. Secure the front door inner weathershield.
    • Secure the wiring harness clips.
    • Connect the electrical connectors.
  6. Install the window regulator motor.
    • Install and tighten the Torx screws.
    • Connect the electrical connector.
  7. Install the front door trim panel. Refer to Front Door Trim Panel information.
  8. Connect the battery ground cable and install the cover. Refer to Specifications information.
