Body And Frame: Notes

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Dimensions are always to the hole center.

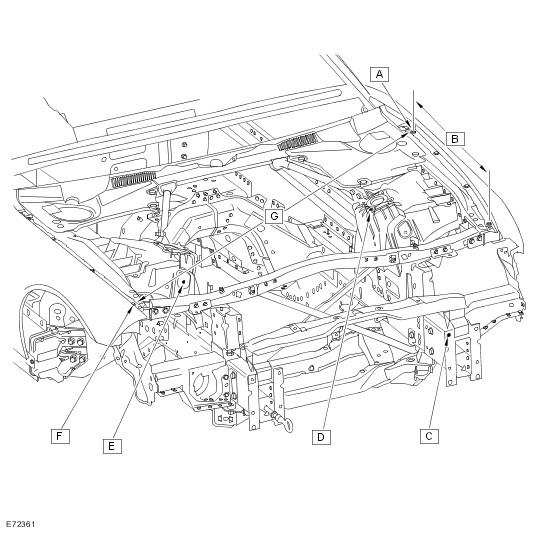

GJ0010431

Front end dimensions  The following dimensions are on the front end of the vehicle.

Detail Dimension
'A' - Rear fender fixing hole 1802.6X, 814.9Y, 964Z
'B' - Rear fender fixing hole to front fender fixing hole 778.7
'C' - Bumper beam top outboard fixing hole 593.5X, 473.7Y, 678.5Z
'D' - Spring mount, forward inboard hole 1304X, 471.4Y, 948.2Z
'E' - Upper arm, top fixing hole 1175.5X, 468.8Y, 862.8Z
'F' - Front fender, fixing hole 1030.4X, 752.6Y, 884.9Z
'G' - Front fender fixing hole to rear fender fixing hole 1749.2

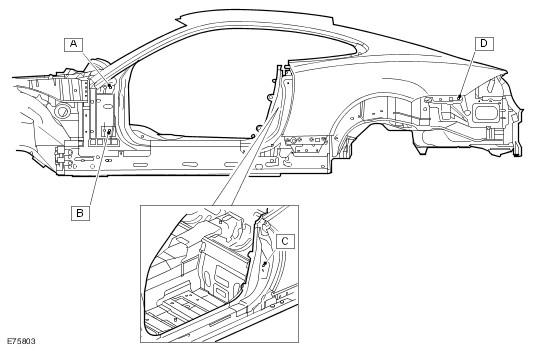

GJ0010432

Body side dimensions

Detail Dimension
'A' - Top door hinge, rearward fixing hole 2136.05X, 807.4Y, 894.2Z
'B' - Bottom door hinge, rearward fixing hole 2138.7X, 818.2Y, 593.5Z
'C' - Door striker fixing, top hole 3352.4, 792.7Y, 728.7Z
'D' - Body side rear tooling hole 4607.3X, 786.9Y, 819.03Z

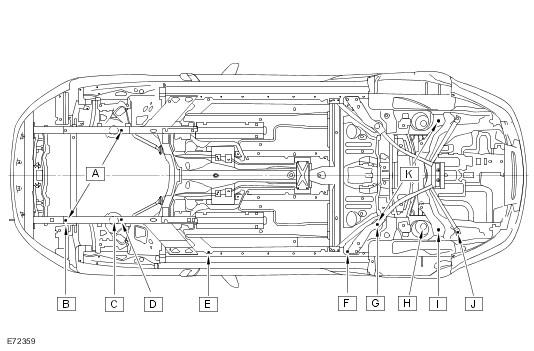

GJ0010433

Underbody dimensions

Detail Dimension
'A' - Front sub-frame front fixing to front sub-frame rear fixing 982.6
'B' - Front sub-frame front fixing 893.1X, 419.5Y, 494Z
'C' - Front spring mount, large hole 1342.9X, 434.4Y, 934.2Z
'D' - Front sub-frame rear fixing 1409.8X, 416.25Y, 493Z
'E' - A-frame rear fixing hole 2237.3X, 703.4Y, 282.2Z
'F' - K-frame front fixing hole 3517X, 704Y, 287.6Z
'G' - Rear sub-frame front fixing hole 3791.7X, 454.5Y, 403.1Z
'H' - Rear spring mounting, large hole 4222.7X, 482.4Y, 755Z
'I' - Rear sub-frame rear fixing hole 4366.5X, 507.6Y, 595Z
'J' - K-frame rear fixing hole 4550X, 528Y, 583.1Z
'K' - Rear sub-frame front fixing to rear sub-frame rear fixing 1120.3

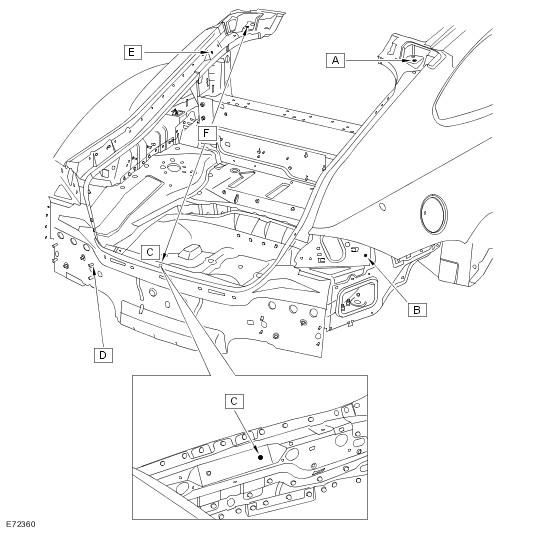

GJ0010434

Rear end body dimensions

Detail Dimension
'A' - Liftgate, hinge fixing rear hole 3686X, 427Y, 1312.6Z
'B' - Tail lamp, outboard fixing hole 4761.1X, 709.5Y, 881Z
'C' - Liftgate striker fixing hole 4985.5X, 71Y, 712.4Z
'D' - Rear bumper inner fixing hole 4676.2X, 396.3Y, 618Z
'E' - Liftgate spigot strut fixing hole 4268.9X, 445.3Y, 1201.8Z
'F' - Liftgate, hinge fixing rear hole to liftgate striker fixing hole 1475.0
