Gap And Profile Dimensions
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

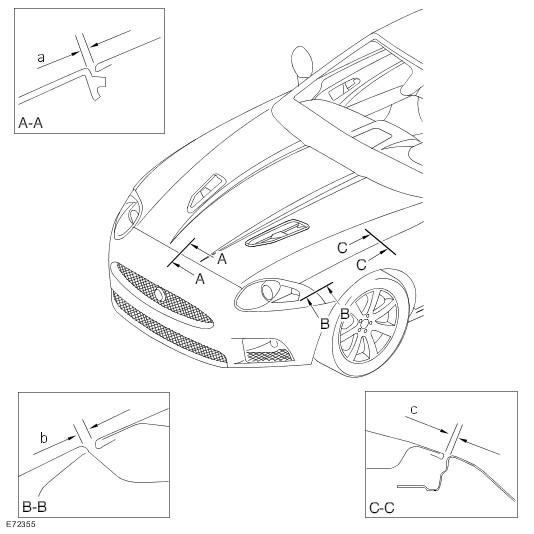

Gap and profile information on the front end of the vehicle
| Detail | Gap | Profile |
|---|---|---|
| 'a' - Hood to front bumper | 4.0 ±1.7 | -1.0 ±1.1 |
| 'b' - Fender to head lamp | 2.0 ±1.6 | -1.0 ±1.5 |
| 'c' - Hood to fender | 3.5 ±1.1 | -1.0 ±1.0 |

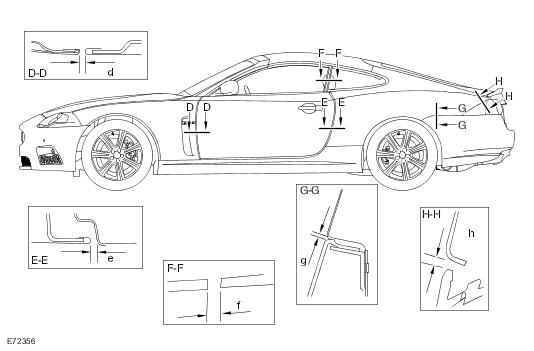

Gap and profile information on the side of the vehicle
| Detail | Gap | Profile |
|---|---|---|
| 'd' - Door to fender | 4.0 ±1.0 | 0.0 +0.5 -1.5 |
| 'e' - Door to bodyside panel | 4.0 ±1.0 | 0.0 ±0.5 |
| 'f' - Door glass to rear quarter glass | 8.0 ±2.0 | 0.0 ±1.0 |
| 'g' - Bodyside panel to rear bumper | 0.0 +0.5 -0.0 | 0.0 |
| 'h' - Rear lamp to bodyside panel | 2.0 ±0.5 | 0.0 ±1.0 |

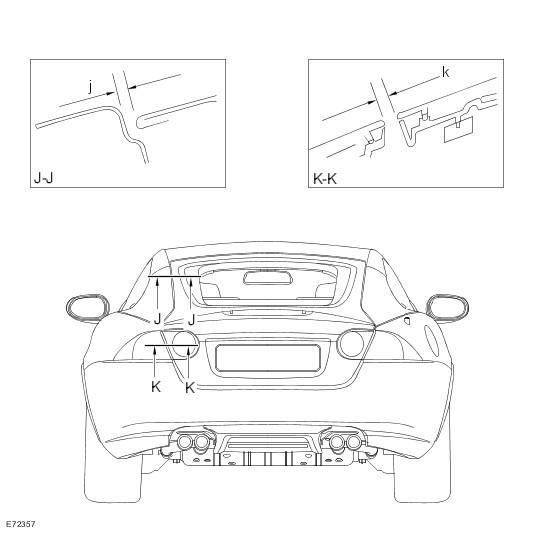

Gap and profile information on the rear end of a Coupe vehicle
| Detail | Gap | Profile |
|---|---|---|
| 'j' - Liftgate to bodyside panel | 3.5 ±1.2 | -5.0 ±1.2 |
| 'k' - Rear lamp to rear fog lamp | 4.0 ±1.0 | -1.0 ±1.0 |

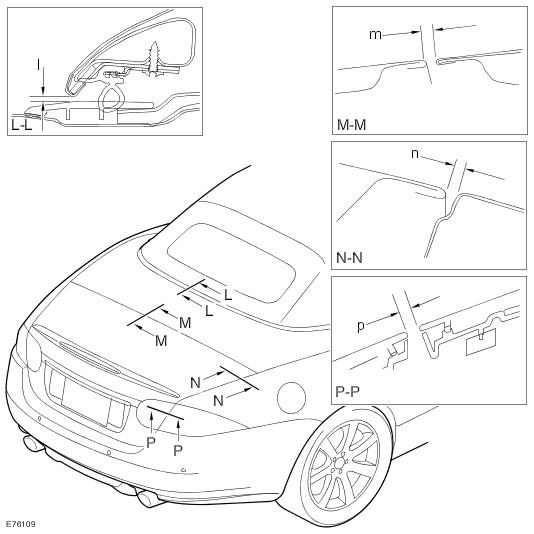

Gap and profile information on the rear end of a Cabriolet vehicle
| Detail | Gap | Profile |
|---|---|---|
| 'l' - Convertible hood to convertible hood compartment lid | 3.0 ±3.0 | N/A |
| 'm' - Convertible hood compartment lid to luggage compartment lid | 5.5 ±1.5 | 0.0 ±1.0 |
| 'n' - Luggage compartment lid to body side panel | 3.5 ±1.0 | -1.0 ±1.0 |
| 'p' - Tail lamp to indicator lamp | 4.0 ±1.6 | 0 ±1.7 |
