Windshield Washer Reservoir: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Some fluid spillage is inevitable during this operation.
    WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
  1. Raise and support the vehicle.
  2. Remove the RH fender splash shield. Refer to Fender Splash Shield information.
  3. Remove the windshield washer reservoir filler neck.
    • Release the clip.
    GJ0009342
  4. Release the washer reservoir.
    • Remove the 2 bolts.

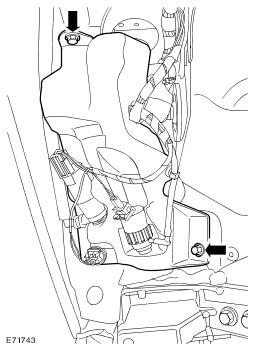

    GJ0009343
    5. NOTE: Note the fitted position.
  5. Remove the windshield washer reservoir.
    • Position a container to collect spillage.
    • Disconnect the 3 electrical connectors.
    • Carefully release the clip.
    • Disconnect the 2 washer jet hoses.

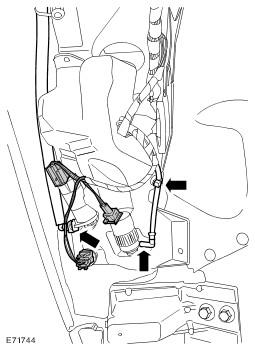

    GJ0009344
    6. NOTE: Do not disassemble further if the component is removed for access only.
  6. Remove the washer reservoir low level sensor.
    • Remove and discard the seal.
  7. Remove the headlamp washer pump.
    • Remove and discard the seal.
  8. Remove the windshield washer pump.
    • Remove and discard the seal.
  9. Remove the filler neck seal.
  10. Remove the rubber mount.
    GJ0009345
