Headlamp Washer Jet: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Vehicles fitted with Xenon headlamps, the following precautions must be observed. Failure to comply may result in exposure to ultra violet rays, severe electric shock, burns or the risk of explosion. Ensure the headlamps are switched off at all times. Eye and hand protection must be worn. Never switch on the lamps or test the bulbs with the lamp holder released from the headlamp.
  1. Disconnect the battery ground cable. Refer to SPECIFICATIONS information.
  2. Open the hood.
    3. CAUTION: Always protect paintwork and glass when removing exterior components.
  3. Release the headlamp assembly.
    • Remove the 3 bolts.
    • Release the locating pegs.
  4. Disconnect the washer jet hose.

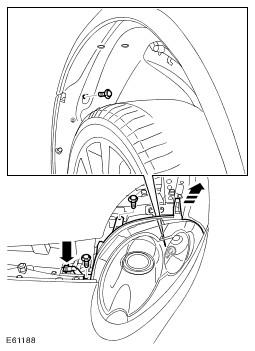

    GJ0008887
  5. Remove the LH headlamp assembly.
    • Disconnect the electrical connector.
    GJ0008888
  6. Remove the headlamp washer jet.
    • Disconnect the washer jet hose.
    • Remove the 2 Torx screws.
    GJ0008894
