Passenger Air Bag Module: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cover and disconnect the battery ground cable. Refer to SPECIFICATIONS information.
  2. Make the SRS system safe. Refer to Supplemental Restraint System (SRS) Health and Safety Precautions .
  3. Remove the instrument panel. Refer to Instrument Panel information.
  4. Remove the navigation system display module. Refer to Navigation System Display Module information.
    5. NOTE: The Torx screws may not be fitted.
  5. Remove the center register.
    • Remove the 2 Torx screws.
    • Carefully release the component.
      GJ0009410
  6. Remove the instrument panel driver's side reinforcement trim panel.
    • Carefully release the 4 clips.
      GJ0009401
    7. CAUTION: Care must be taken to avoid damage to the mating surfaces.
  7. Remove the driver side register trim panel.
    • Remove the 2 Torx screws.
      GJ0009402
  8. Remove the instrument panel passenger side reinforcement trim panel.
    • Carefully release the 7 clips.
      GJ0009403
  9. Remove the passenger side register.
    • Remove the 2 Torx screws.
    • Carefully release the component.
      GJ0009404
  10. Release the glove compartment.
    • Remove the 5 Torx screws.
    • Release the 2 clips.
      GJ0009302
  11. Remove the glove compartment.
    • Disconnect the 2 electrical connectors.
    • Release the glove compartment lamp assembly.
      GJ0009303
    12. CAUTION: Care must be taken to avoid damage to the mating surfaces.
  12. Carefully release and remove the rheostat switch assembly.
    • Disconnect the electrical connector.
      GJ0009434
  13. Release the MOST diagnostic port.
    • Carefully release the clip.
      GJ0009436
  14. Remove the instrument panel, lower trim panel.
    • Remove the 3 Torx bolts.
    • Remove the 2 Torx screws.
    • Release the 2 clips.
    • Release the vehicle diagnostic port.
      GJ0009437
    15. CAUTION: Protect the surrounding trim from damage when changing the component.
  15. Remove the instrument cluster surround.
    • Remove the 3 screws.
      GJ0009493
  16. Remove the instrument cluster.
    • Raise the steering column finisher for access to the lower screws.
    • Remove the 4 screws.
    • Disconnect the 2 electrical connectors.

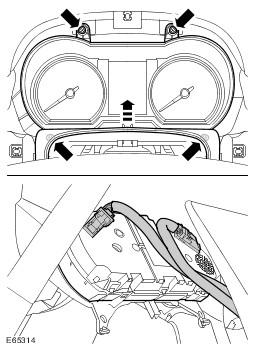

      GJ0009494
  17. Remove the in-vehicle temperature sensor.
    • Remove the Torx screw.
    • Disconnect the electrical connector.
      GJ0009495
    18. CAUTION: Protect the surrounding trim from damage when changing the component.
  18. Release the instrument panel upper trim.
    • Remove the 11 Torx screws.
    • Collect the compression limiters.
    • Release the glove box support bracket.
    • Remove the 2 Torx screws.
    • With assistance, separate the components.

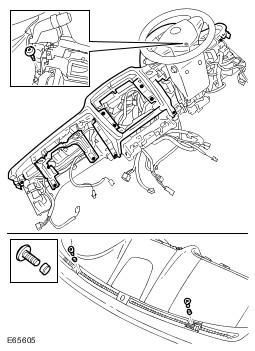

      GJ0009496
  19. Disconnect the passenger air bag ground cable.
    • Remove the Torx bolt.
  20. Disconnect the passenger air bag module 2 electrical connectors.
    • Carefully release the clips.
      GJ0009497
  21. Remove the heater duct.
    • Remove the 3 Torx screws.
      GJ0009498
  22. Remove the passenger air bag module.
    • Remove the 8 Torx bolts.
      GJ0009499
