Front Passenger Seat Occupant Classification Sensor: Removal

WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: The front passenger seat occupant classification sensor is available only as a service kit. No attempt should be made to replace individual components. Failure to follow this instruction may result in personal injury.
  1. Remove the cover and disconnect the battery ground cable. Refer to Specifications information.
  2. Make the SRS system safe. Refer to Supplemental Restraint System (SRS) Health and Safety Precautions .
  3. Remove the front seat. Refer to FRONT SEAT information.

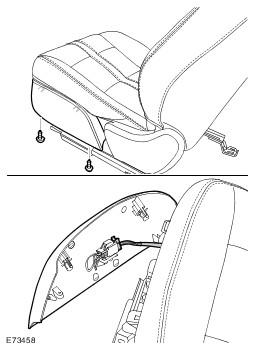

  4. Release the front seat cushion outer trim panel.
    • Remove the 2 Torx screws.
  5. Remove the front seat cushion outer trim panel.
    • Release the 2 clips.
    • Disconnect the electrical connector.
      GJ0009211

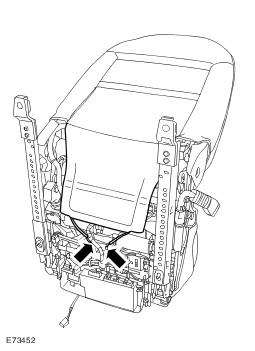

  6. Release the front seat backrest cover lower tension straps.
    GJ0009205
  7. Release the pre-tensioner harness and disconnect the electrical connector.
    GJ0010424

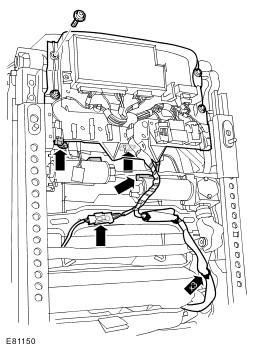

  8. Release the seat module bracket.
    • Disconnect the 4 electrical connectors.
    • Release the 3 wiring harness clips.
    • Remove and discard the cable tie.
    • Remove the 4 Torx bolts.
      GJ0010425
  9. Release the occupant classification module from the seat module bracket.
    • Remove the 2 Torx screws.
      GJ0010426

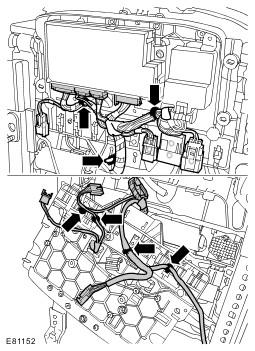

  10. Release the harness assembly from the seat module bracket.
    • Release the 7 wiring harness clips.
    • Release the 4 electrical connectors.
    • Disconnect the 4 electrical connectors.
      GJ0010427

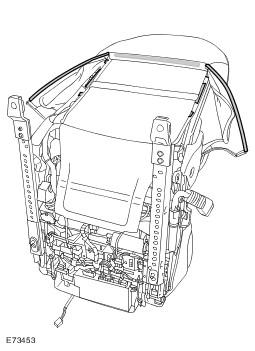

  11. Release the 9 front seat backrest cover rear panel retaining clips.
    • Release from the backrest cover.
    • Release from the seat frame.
      GJ0009206
  12. Release the harness from the lumbar assembly.
    • Disconnect the 3 electrical connectors.
    • Release the 3 electrical connectors.
      GJ0009215

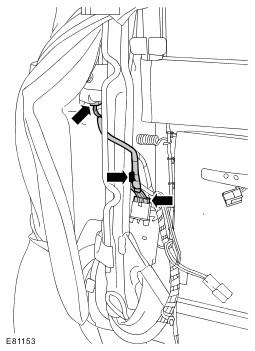

  13. Release the harness from the seat airbag and backrest frame.
    • Disconnect the electrical connector.
    • Release the wiring harness clip.
      GJ0010428
  14. Release the occupant classification assembly from the seat cushion frame.
    • Release the 2 clips.
      GJ0010429
    15. NOTE: Seat harness is part of the occupant classification sensor assembly.
    NOTE: Note the routing of the seat harness.
  15. Remove the passenger seat cushion and occupant classification sensor assembly.
    • Release and disconnect the electrical connector.
    • Release the Velcro strap.
    • Release the 5 clips.
      GJ0010430
  16. Remove the front seat cushion cover.
    • Remove the 27 hog rings.
      GJ0009214
